Description
Carbon Monoxide (CO) Calibration Gas for Detector and Safety System Calibration
This Carbon Monoxide (CO) calibration gas is available in 50 ppm and 100 ppm concentrations for accurate calibration of fixed and portable gas detection systems. Supplied in 103-liter cylinders with nitrogen balance gas, both options provide consistent reference concentrations for routine CO sensor testing, alarm verification, and industrial safety programs.
Carbon monoxide monitoring is critical in parking structures, boiler and mechanical rooms, combustion environments, tunnels, industrial facilities, and other enclosed spaces where incomplete combustion can create hazardous conditions. These calibration gases support systems used in gas leak detection, ventilation control, workplace exposure monitoring, and gas life safety systems.
Calibration Profile: Carbon Monoxide (CO) Gas Options
Choose between standard and higher-range carbon monoxide calibration points based on your detector range, alarm settings, maintenance procedure, and monitoring environment.
Standard Range
Higher Range
103L
Best Fit Applications
- Routine carbon monoxide detector calibration
- Parking garage and tunnel ventilation monitoring
- Boiler room and combustion-system safety checks
- Industrial exposure and workplace safety programs
- Portable and fixed CO detector verification
Technical note: The 50 ppm option is suited to standard CO response verification, while 100 ppm provides a stronger calibration point for higher-range detectors, industrial monitoring programs, and systems configured around elevated alarm thresholds.
Specifications
- Gas: Carbon Monoxide (CO)
- Available Concentrations: 50 ppm, 100 ppm
- Balance Gas: Nitrogen (N₂)
- Cylinder Size: 103 Liter
- Accuracy: ±2%
- Lead Time: 4 business days
Compatibility & Ordering Notes
- Confirm regulator compatibility and required delivery flow before ordering a CO calibration cylinder.
- Match the selected concentration to the detector manufacturer’s calibration range, sensor type, and configured alarm thresholds.
- Custom carbon monoxide mixtures, alternate regulators, and additional cylinder configurations are available upon request.
Applications
- Calibration of fixed and portable carbon monoxide detectors
- Parking garage and tunnel ventilation control systems
- Boiler, furnace, and combustion-process monitoring
- Mechanical room and enclosed-space safety programs
- Industrial hygiene and workplace exposure monitoring
- Environmental and facility safety compliance
- Used alongside gas detector calibration services
- Supports gas detection system installation projects
How to Choose the Right Carbon Monoxide Calibration Gas
Select 50 ppm for standard CO detector calibration, routine maintenance, and systems using lower or moderate alarm points. Choose 100 ppm when your detector has a broader operating range, requires a stronger response check, or is used in industrial and combustion environments with higher calibration thresholds. Always follow the detector manufacturer’s specified span concentration whenever one is provided.
Available Carbon Monoxide Gas Concentrations
- 50 ppm CO Calibration Gas: Standard detector calibration for parking structures, mechanical rooms, ventilation systems, and routine safety programs
- 100 ppm CO Calibration Gas: Higher-range response verification for industrial monitoring, combustion systems, and elevated alarm thresholds
Variation Specifications

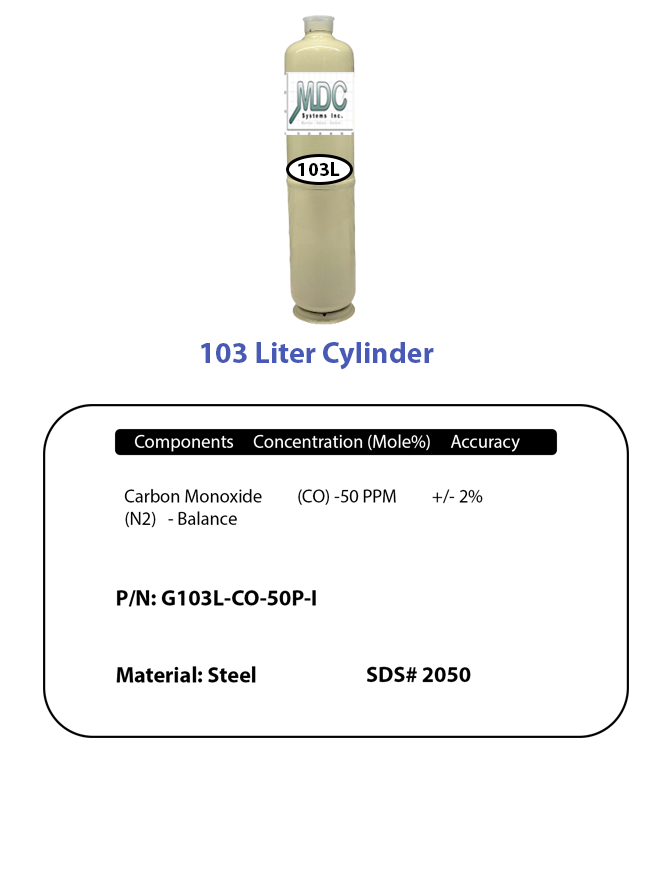

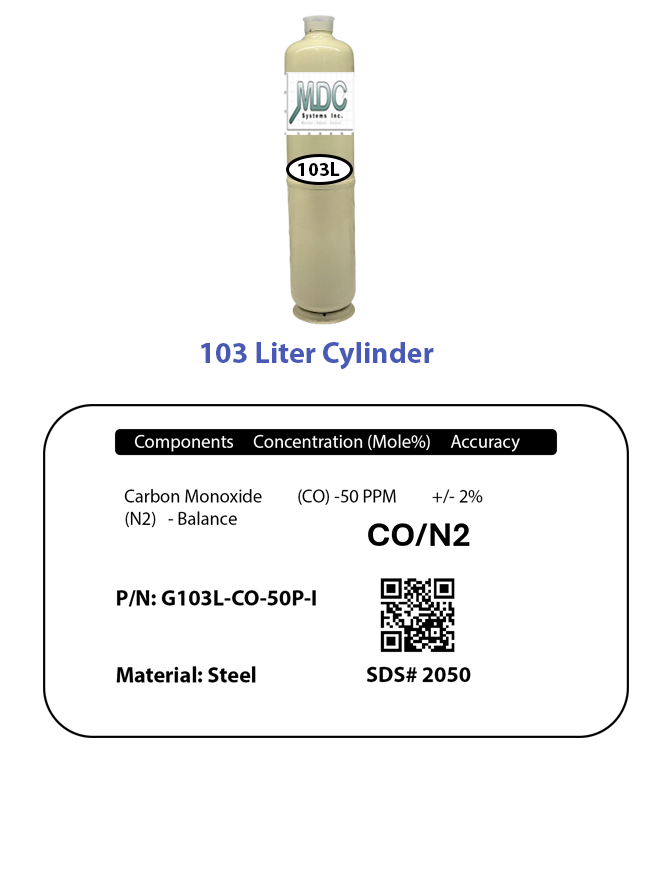

- 50 ppm / 103L: CO 50 ppm in nitrogen; part number G103L-CO-50P-I
- 100 ppm / 103L: CO 100 ppm in nitrogen; part number G103L-CO-100P-I
Additional Options
- Custom gas mixtures not listed: Available upon request
- Alternative regulators and flow configurations: Available upon request
- Different cylinder sizes within calibration kits: Available upon request
Need Help With CO Calibration or System Support?
MDC Systems provides carbon monoxide calibration gas, detector calibration, system maintenance, and technical support for commercial and industrial CO monitoring applications.
